1734-IB8S

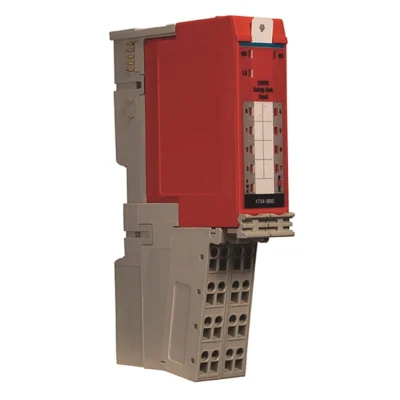

Allen Bradley 1734-IB8S is a POINT I/O Guard I/O Safety Module.
Description
| Model Number | 1734-IB8S |
| Module Type | Digital Input |
| Input Channels | 8 |
| Input Type | Sinking (NPN) |
| Voltage Rating | 24V DC |
| Response Time | Typically ≤1 ms (varies by configuration) |
| Backplane Current Draw | Dependent on load (e.g., ~50 mA at 5V) |
| Compatibility | Works with POINT I/O adapters (e.g., 1734-ADN, -AENT) |
| Status Indicators | Per-channel status LEDs (green/red) |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Certifications | CE, UL, ATEX (varies by region) |
| Mounting | DIN rail mountable |
| Configuration | Set via software (RSLogix/Studio 5000) |
| Protection | Short-circuit and reverse polarity protection |
| Communication Protocol | Dependent on adapter (e.g., DeviceNet, Ethernet/IP). |
