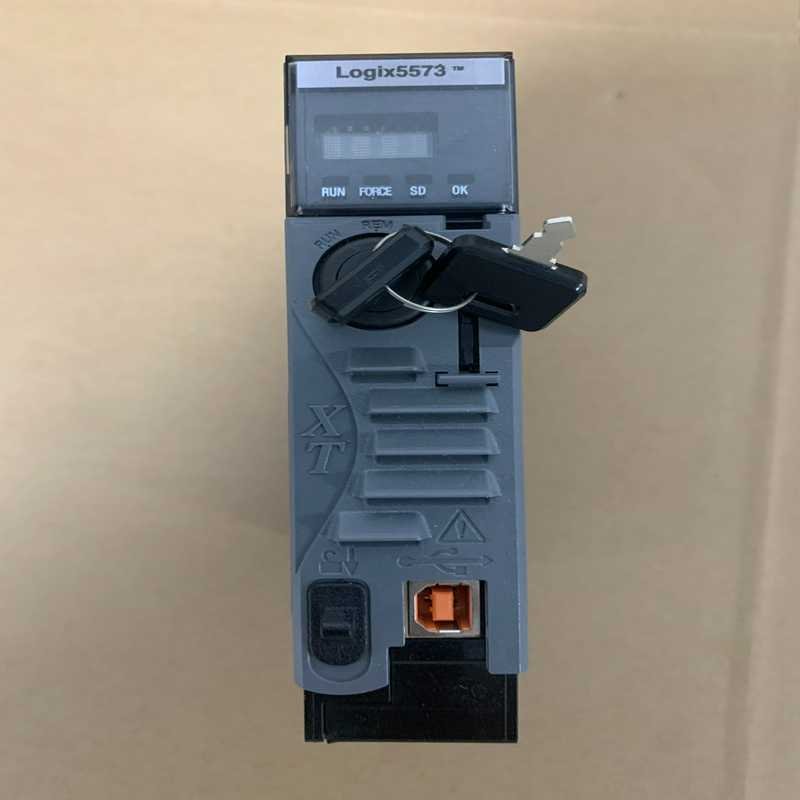

1756-L73XT/B Allen-Bradley ControlLogix 8MB Controller L7XT
Allen-Bradley 1756-L73XT ControlLogix-XT 1756-L7 Logix5673 Controller, Conformally Coated for extended protection in harsh & corrosive environments, with 8 Mbytes User Memory, 1-Port USB 2.0, 32 Tasks, 100 Programs/Task, 128,000 Total I/O; Operating Temperature Range from -20…+70 °C (-4…+158 °F); Customers who previously used the LXT chassis should now migrate to the K version of the chassis, Series B
Description
| Parameter | Value |
|---|---|
| User Memory | 8 MB |
| I/O Memory | 0.98 MB |
| Operating Temperature | -20°C to 70°C (Industrial wide temperature) |
| Power Consumption | 2.5 W |
| Heat Dissipation | 8.5 BTU/hr |
| Isolation Voltage | 30 V (continued) |
| USB Speed | 12 Mbps (full speed) |
| Weight | 0.25 kg |
| Slot Width | 1 slot |
| Shock Resistance | 30 g (Work shock), 50 g (Non-operating shock) |
| Vibration Resistance | 10–500 Hz (Working vibration) |
| Compatible Chassis | Universal type：1756-A7XT, 1756-A10XT； Low temperature type：1756-A4K/A7K/A10K/A13K/A17K |
