| Manufacturer |
Rockwell Automation / Allen-Bradley |
| Brand |
Allen-Bradley |
| Part Number/Catalog No. |
1769-ASCII |
| Product Type: |
Specialty module |
| Product Line |
CompactLogix |
| Description: |

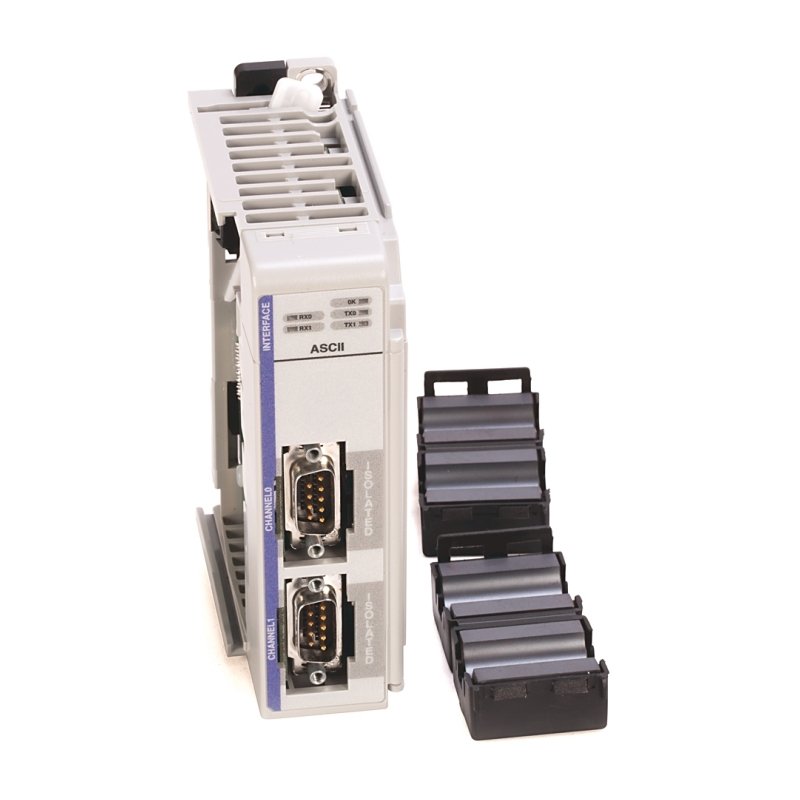

ASCII communication module |
| Module Type |
Communication Interface Module |
| Mounting: |
Chassis mount; DIN Rail or Panel |
| Power Rating: |
425mA @ 5Vdc |
| Shipping Weight |
2 lbs. |
| CompactLogix Power Supply Distance Rating: |
4 |
| Power Dissipation, Max: |
2.13 Watts |
| Shipping Dimensions |
8 x 8 x 5 in. |
| Thermal Dissipation: |
7.3 BTU/hr. |
| Series |
A and B |
| Handshaking |
RTS/CTS Hardware Handshaking Enabled |
| Temperature Range: |
0-62 deg. C (32 to 140 deg. F) |
| Input Words |
108 |
| Isolation Voltage |
30 Volts Continuous |
| Backplane Current |
1.4 Amps at 24 Volts |
| Configuration Words: |
31 |
| Power Consumption |
33.6 Watts |
| Number of Inputs: |
2 full duplex (RS-232, RS-422) 2 half duplex (RS-485) |
| Power Dissipation |
7.5 Watts |
| Serial Input Voltage Signal: |
3??25V dc with respect to signal ground (SG) ??0??, Asserted, ON, Space, Active -3??-25V dc with respect to signal ground (SG) ??1??, Disasserted, OFF, Mark, Inactive |
| Recommended cable: |
Belden 8761 (Shielded) |
| UPC |
10612598314239 |
| Serial Port status: |
TX FIFO overflow, RX FIFO overflow, RX parity error, handshake error, new data flag |
