| Manufacturer |
Rockwell Automation / Allen-Bradley |
| Brand |
Allen-Bradley |
| Part Number/Catalog No. |

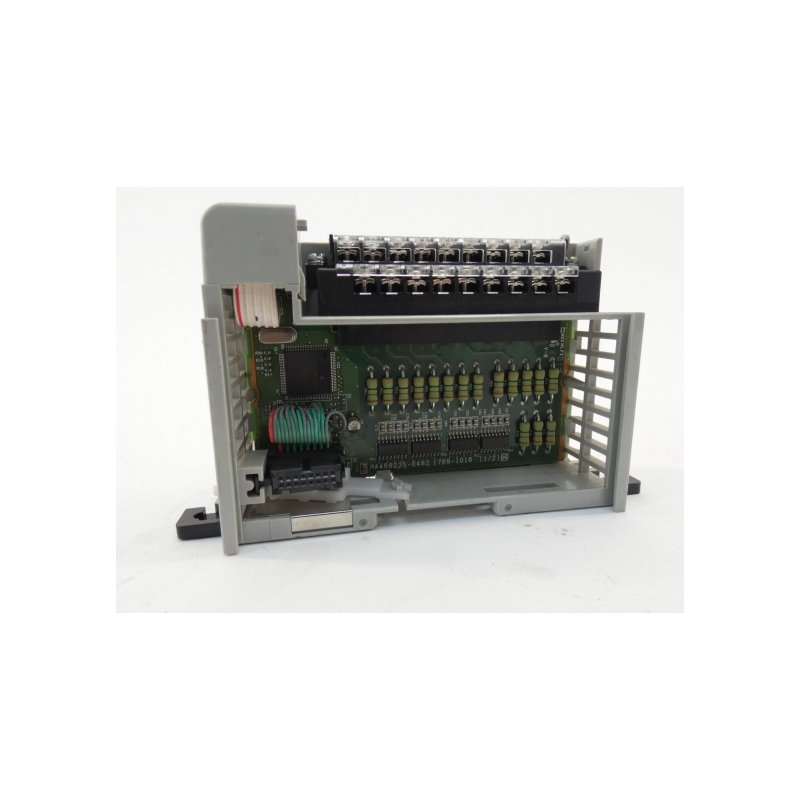

1769-IQ16 |
| Product Family: |
Compact I/O |
| Product Line |
CompactLogix |
| Product Type: |
Discrete Input Module |
| Module Type |
DC Input Module |
| Input Type |
Digital Input |
| No. of Inputs: |
16 |
| No. of Groups: |
2 groups (8 inputs each) |
| Power Supply Distance rating: |
8 |
| Communication Cable |
16 Point |
| Compatible Controllers: |
MicroLogix 1500; CompactLogix |
| Shipping Weight |
2 lbs. |
| Voltage Category: |
24V DC sink/source |
| Shipping Dimensions |
8 x 8 x 5 in. |
| Series |
A and B |
| Operating Voltage range: |
10??30V DC @ 30 ??C (86 ??F) 10??26.4V DC @ 60 ??C (140 ??F) |
| Distance Rating |
8 Modules |
| Off-state Voltage: |
5V DC |
| On-state Voltage: |
10V DC |
| Working Voltage Rating |
30 Volts AC/ 30 Volts DC |
| Input delay, On: |
8 ms |
| Wire Type |
Copper-90 degrees Celsius |
| Power Supply: |
1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
| Replacement Terminal Block |
1769-RTBN18 |
| Wire Size (Solid) |
22-14 AWG |
| UPC |
10662468992814 |
| Wire Size |
22-14 AWG (Solid); 22-16 AWG (stranded) |
