| Manufacturer |
Rockwell Automation |
| Part Number/Catalog No. |
2080-LC50-24QBB |
| Brand |
Allen-Bradley |
| Product Description: |

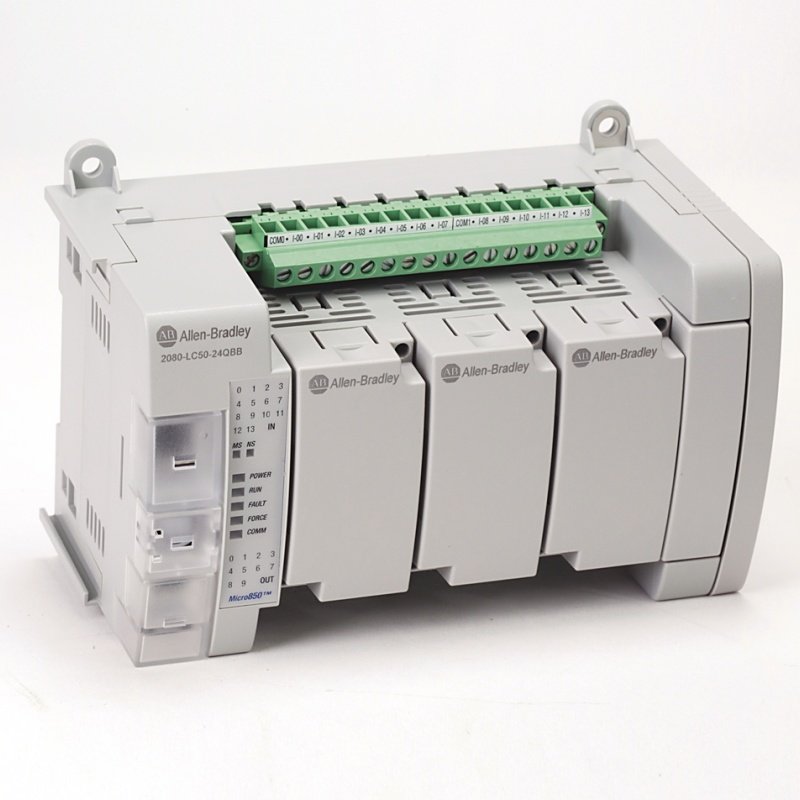

Micro 850 Programmable Logic Controller (PLC) |
| Input Voltage category |
24V sink/source 24V AC, 50/60 Hz |
| No. of High-speed inputs: |
Eight (8) |
| High-speed input location: |
Inputs 0-7 |
| Standard input location: |
Inputs 8 and higher |
| Output voltage category: |
24VDC |
| No. of high-speed outputs: |
2 |
| High-speed output location: |
Outputs 0-1 |
| no. of standard outputs: |
8 |
| Standard output location: |
Outputs 2 and higher |
| Base Serial Port |
One (1) RS-232/485 non-Isolated |
| Configuration port |
One (1) USB Type B |
| Ethernet port: |
One (1) RJ45 port |
| Dimensions (HxWxD) |
90x230x80 mm |
| Power supply voltage: |
20.4??26.4V DC Class 2, or Limited Voltage Limited Current Source (LVLC) |
| Product Type |
Programmable Logic Controller |
| Inputs |
14 |
| Input Type |
12/24V |
| Outputs |
10 |
| Output Type |
24V Source |
| Motion Axis |
2 PTO |
| HSC |
4 HSC |
| Base Plug-in Slots |
3 |
| Base 100KHz HSC max. |
4 HSC |
| Dimensions HxWxD |
90x145x80 mm |
| Expansion I/O Modules |
Upt to 4 Modules |
| Max. Digital I/O |
132 |
