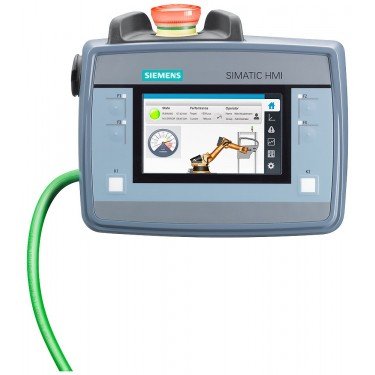

6AV2125-2DB23-0AX0 Siemens
SIMATIC HMI KTP400F Mobile with integrated acknowledgement button, emergency switching-off switch, Touch and Key operation, 4″ widescreen TFT display, PROFINET interface, configurable from WinCC Comfort V13 SP1 with HSP
Description
Technical specifications
Width192 mm
Height165.2 mm
Depth87 mm
Number of HW-interfaces USB1
Weight0.7 kg/km
Operating temperature0;45 °C
Supply voltage DC19.2;28.8 V
Number of HW-interfaces industrial Ethernet1
Number of interfaces PROFINET1
Screen diagonal4.3 mm
Number of colours of the display16777216
Number of pixels, horizontal480
Number of pixels, vertical272
Number of function buttons, programmable4
Useful project memory/user memory4000 kByte
Number of password levels50
Number of online languages32
Number of buttons with LED4
Max. fall height according to IEC 60068-2-321.2 m
