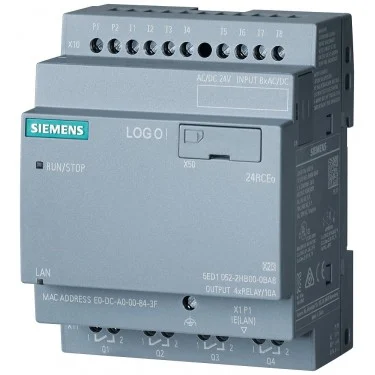

6ED1052-2HB08-0BA0 Siemens
LOGO! 24RCEO (AC), logic module, PS/I/O: DC 24V/24V AC/relay, 8 DI/4 DO, without display, memory 400 blocks, modularly expandable, Ethernet, integr. web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8 or higher, older projects executable
Description
The 6ED1052-2HB08-0BA0 is a LOGO! 8 series basic host module from Siemens, designed for compact and cost-effective automation solutions in small-scale industrial applications. Below is a detailed introduction based on available technical specifications and product documentation:
1. Key Features
- Basic Control Unit: Part of the LOGO! 8 series, offering 8 digital inputs (DI) and 4 relay outputs (DO).
- Power Supply: Supports 115–240 V AC/DC (universal voltage range).
- Memory & Logic: Includes 400 function blocks for programming logic, timers, counters, and arithmetic operations.
- Expansion Capability: Modular design allows expansion up to 24 DI, 16 DO, 8 AI, and 2 AO via additional modules.
2. Communication & Connectivity
- Ethernet Interface: Integrated Web server for remote monitoring and configuration.
- MicroSD Card Support: Enables data logging and program backup.
- Compatibility: Works with LOGO! Soft Comfort programming software (supports ladder logic and function block diagrams).
3. Applications
- Industrial Automation: Ideal for machine control, lighting systems, and small-scale process automation.
- Energy Management: Supports datalogging for energy consumption analysis.
