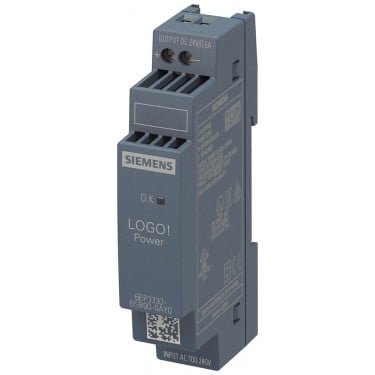

6EP3330-6SB00-0AY0 Siemens
LOGO!Power 24 V / 0.6 A stabilized power supply input: 100-240 V AC output: 24 V DC/ 0.6 A
Description
The 6EP3330-6SB00-0AY0 is a 24V DC DIN rail power supply from Siemens, designed for industrial automation and compatible with LOGO! control systems. Below is a detailed introduction based on technical specifications and market data:
1. Key Specifications
- Input Voltage:
- AC: 100–240 V AC (universal input)
- DC: 110–300 V DC (for DC input applications)
- Output:
- Voltage: 24 V DC
- Current: 0.8 A (rated power: 19.2 W)
- Dimensions: 36 × 53 × 90 mm (W × D × H)
- Efficiency: 86%
- Certifications: CE, UL, CSA, cULus, FM, and others
2. Features
- DIN Rail Mounting: Compact design for easy installation in control cabinets.
- Wide Input Range: Suitable for global industrial power grids.
- Protection: Overvoltage, short-circuit, and overload protection.
- Low Ripple & Noise: 200 mV peak-to-peak for stable operation
