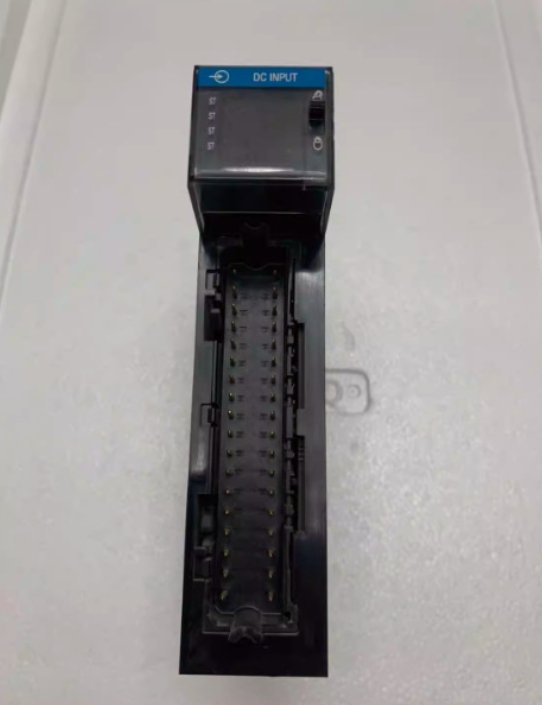

756-IB32 ControlLogix 32-Point Sink DC Input Module
Industrial 32-channel sinking DC input module for ControlLogix systems. Features configurable filtering (0-18ms delay), ±200µs timestamping, and 10-31.2V DC wide input range. Designed for harsh environments (0-60°C).
Description
| Parameter | Value |
|---|---|
| Model Number | 1756-IB32 |
| Product Type | ControlLogix DC Sinking Input Module |
| Input Channels | 32 (16 points/group) |
| Voltage Category | 12/24V DC Sink |
| Operating Voltage Range | 10–31.2V DC |
| Nominal Voltage | 24V DC |
| Input Delay (Off→On) | 380 µs max + configurable filter (0/1/2 ms) |
| Input Delay (On→Off) | 420 µs max + configurable filter (0/1/2/9/18 ms) |
| Current Draw | 120 mA @ 5.1V DC 2 mA @ 24V DC |
| Backplane Power | 0.66 W |
| Power Dissipation | 6.2 W @ 60°C (140°F) |
| On-State Current | 4.8 mA min @ 10V DC 5.5 mA max @ 31.2V DC |
| Isolation Voltage | 250V continuous (reinforced insulation, inputs-to-backplane) |
| Update Time | 200 µs–750 ms (software-configurable) |
| Timestamp Accuracy | ±200 µs |
| Reverse Polarity Prot. | Yes |
| Operating Temperature | 0–60°C (32–140°F) |
