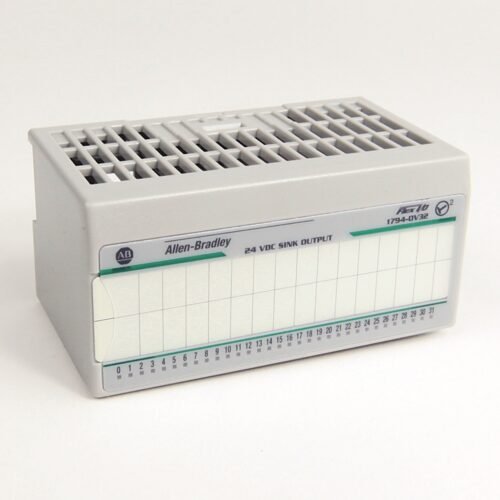

Allen-Bradley 1794-OV32
The 1794-OV32 is a 32-channel sinking digital output module for Allen-Bradley FLEX I/O systems. It operates at 24V DC (10–31.2V range), supports up to 14A total output current (grouped for channels 0–15 and 16–31), and features fast switching (0.5ms/1.0ms delays). Designed for industrial automation, it meets global safety standards (UL, CE, etc.) and is housed in a compact 94×94×89 mm enclosure.
Description
| Model | 1794-OV32 |
| Type | 32-channel digital sinking output |
| Output Current Rating | 14 A max (total module) |
| • Channels 0–15 | 6 A total |
| • Channels 16–31 | 8 A total |
| Output Voltage Range | 10–31.2V DC (nominal 24V DC) |
| On-State Current | 1.0 mA min / 500 mA max per channel |
| Surge Current | 2 A for 50 ms (repeatable every 2s) |
| Off-State Leakage | ≤ 0.5 mA |
| Output Delay | • Off-to-On: 0.5 ms • On-to-Off: 1.0 ms |
| Isolation Voltage | 50V continuous (field-to-system) |
| Power Dissipation | 4.4 W max @ 31.7V DC |
| Dimensions (H×W×D) | 94 × 94 × 89 mm (3.7 × 3.7 × 2.7 in.) |
| Weight | 80 g (2.82 oz) |
| Operating Temperature | 0–55°C (32–131°F) |
| Certifications | UL, cULus, CE, UKCA, KC, RCM |
