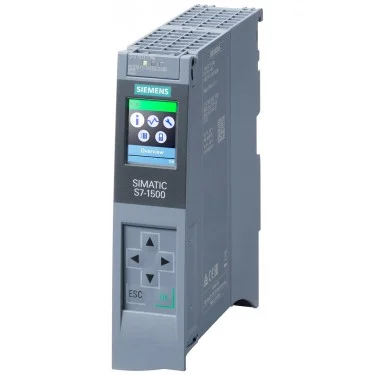

Siemens PLC 6ES7511-1AK02-0AB0
The Siemens 6ES7511-1AK02-0AB0 is a Central Processing Unit (CPU) with a working memory of 150 KB and a data memory of 1 MB. Spare part SIMATIC S7-1500, 6ES7511-1AK02-0AB0, CPU 1511-1 PN, central drive with 150 KB working memory for the program and 1 Mbyte for data, 1st interface: PROFINET IRT with 2-port switch, 60ns bit performance, SIMATIC Memory Card required
Description
Width35 mm
Height147 mm
Depth129 mm
Supply voltage DC19.2;28.8 V
Number of HW-interfaces industrial Ethernet1
Number of interfaces PROFINET1
Memory size1150 kByte
Processing time (1K, binary operation)0.06 ms
